Light Welded Mesh
Our premium grade European manufactured galvanised mesh is made using pre-galvanised steel wire which are then welded into square or rectangular meshes, and hot dip galvanised after to give a thicker layer for better corrosion resistance.

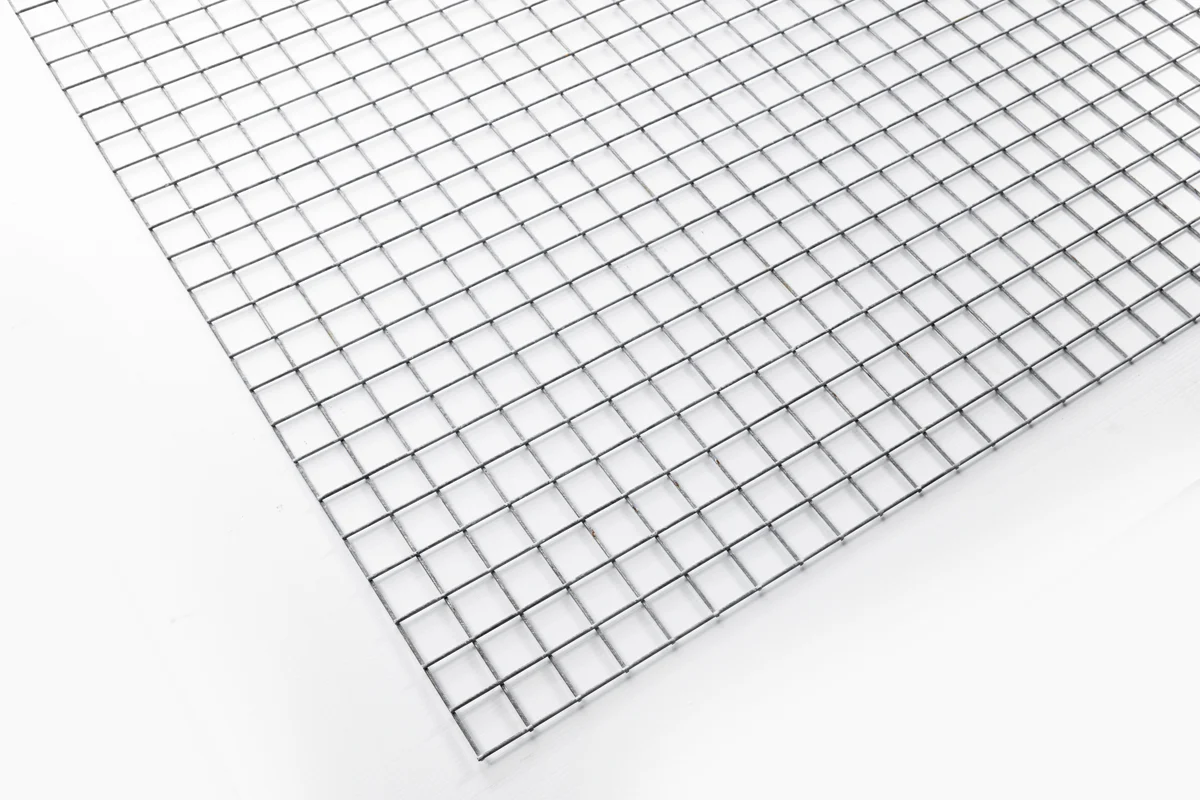

Galvanised Light Welded Mesh
| Mesh Size | Wire Thickness | Roll Size |
|---|---|---|
| 1/4″ x 1/4″ | 23swg (0.61mm) | 30m x 915mm |
| 1/2″ x 1/2″ | 19swg (1.0mm) | 30m x 915mm |
| 1/2″ x 1/2″ | 19swg (1.0mm) | 30m x 1220mm |
| 1/2″ x 1/2″ | 16swg (1.6mm) | 30m x 915mm |
| 1/2″ x 1/2″ | 16swg (1.6mm) | 30m x 1220mm |
| 1″ x 1″ | 16swg (1.6mm) | 30m x 915mm |
| 1″ x 1″ | 16swg (1.6mm) | 30m x 1220mm |
| 1″ x 1″ | 16swg (1.6mm) | 30m x 1830mm |
| 1″ x 1″ | 14swg (2.0mm) | 30m x 915mm |
Pre-Galvanised Welded Mesh
| Mesh Size | Wire Thickness | Roll Size |
|---|---|---|
| 1/2″ x 1/2″ | 16swg (1.6mm) | 25m x 915mm |
| 1/2″ x 1/2″ | 16swg (1.6mm) | 25m x 1220mm |
| 3/4″ x 3/4″ | 16swg (1.6mm) | 25m x 915mm |
| 1″ x 1″ | 15swg (1.8mm) | 25m x 915mm |
| 1″ x 1″ | 16swg (1.8mm) | 25m x 1220mm |
| 2″ x 2″ | 14swg (2.0mm) | 25m x 1016mm |
| 2″ x 2″ | 14swg (2.0mm) | 25m x 1220mm |
| 2″ x 2″ | 14swg (2.0mm) | 25m x 1525mm |
| 2″ x 2″ | 14swg (2.0mm) | 25m x 2032mm |
