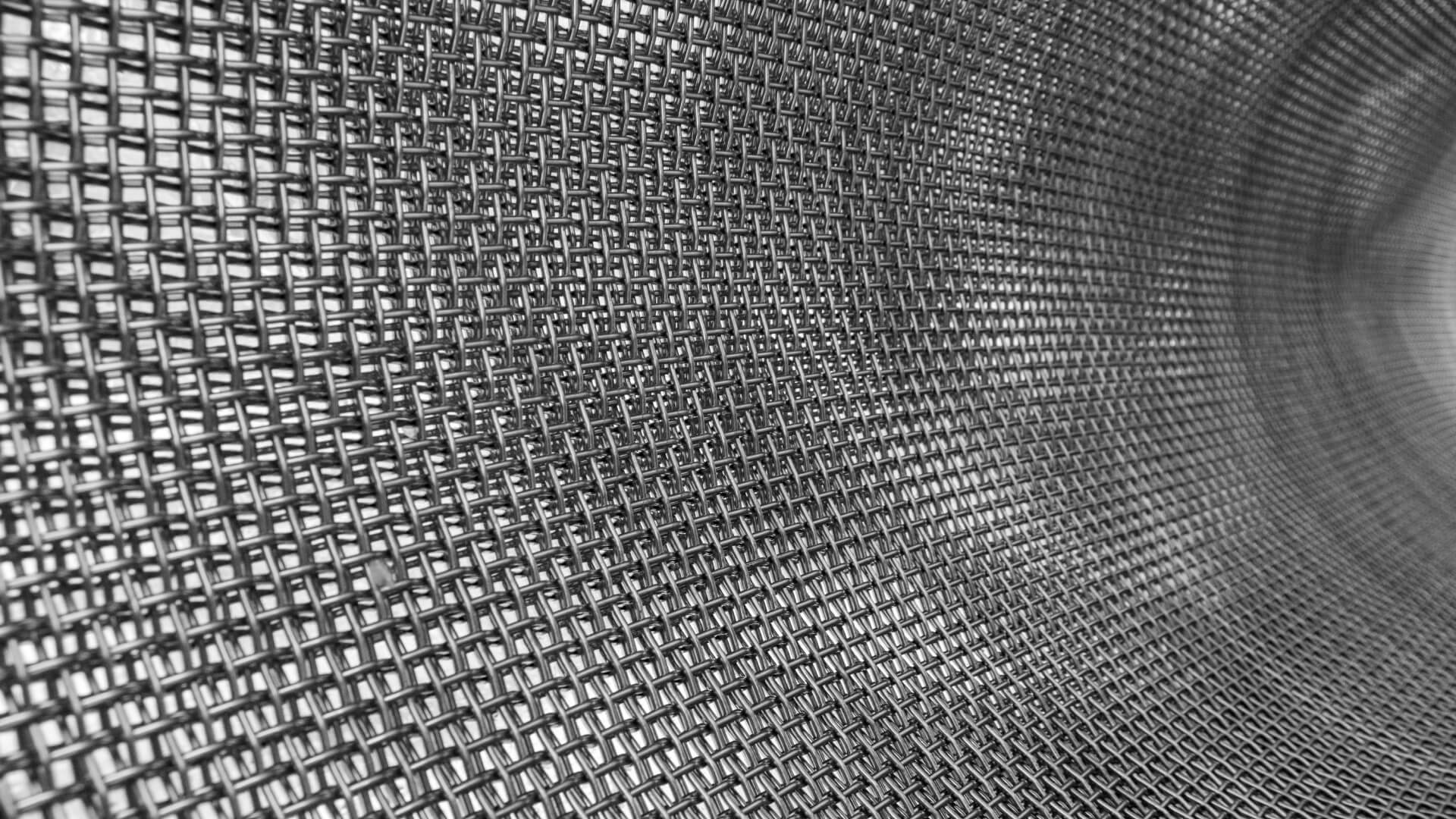

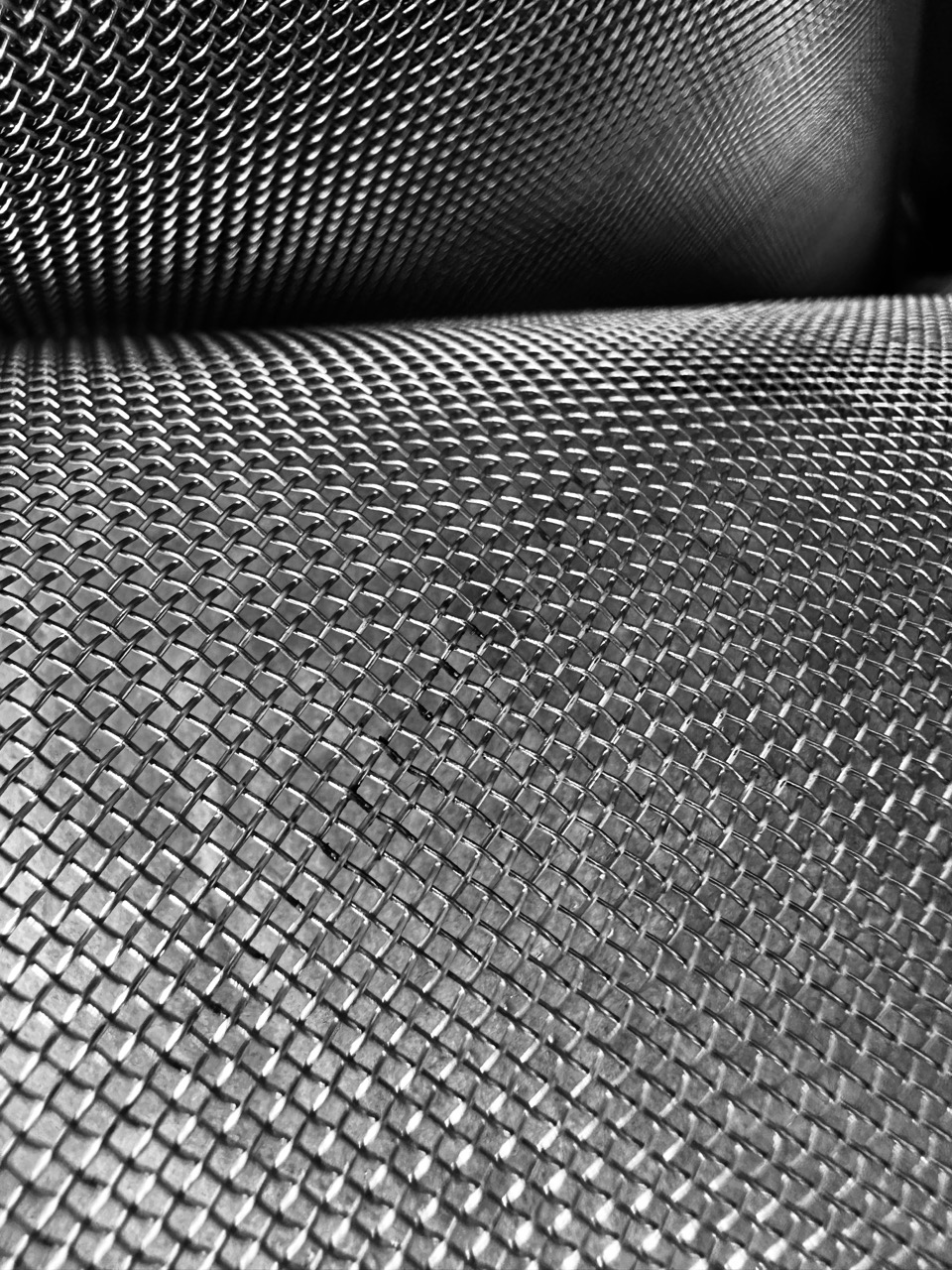

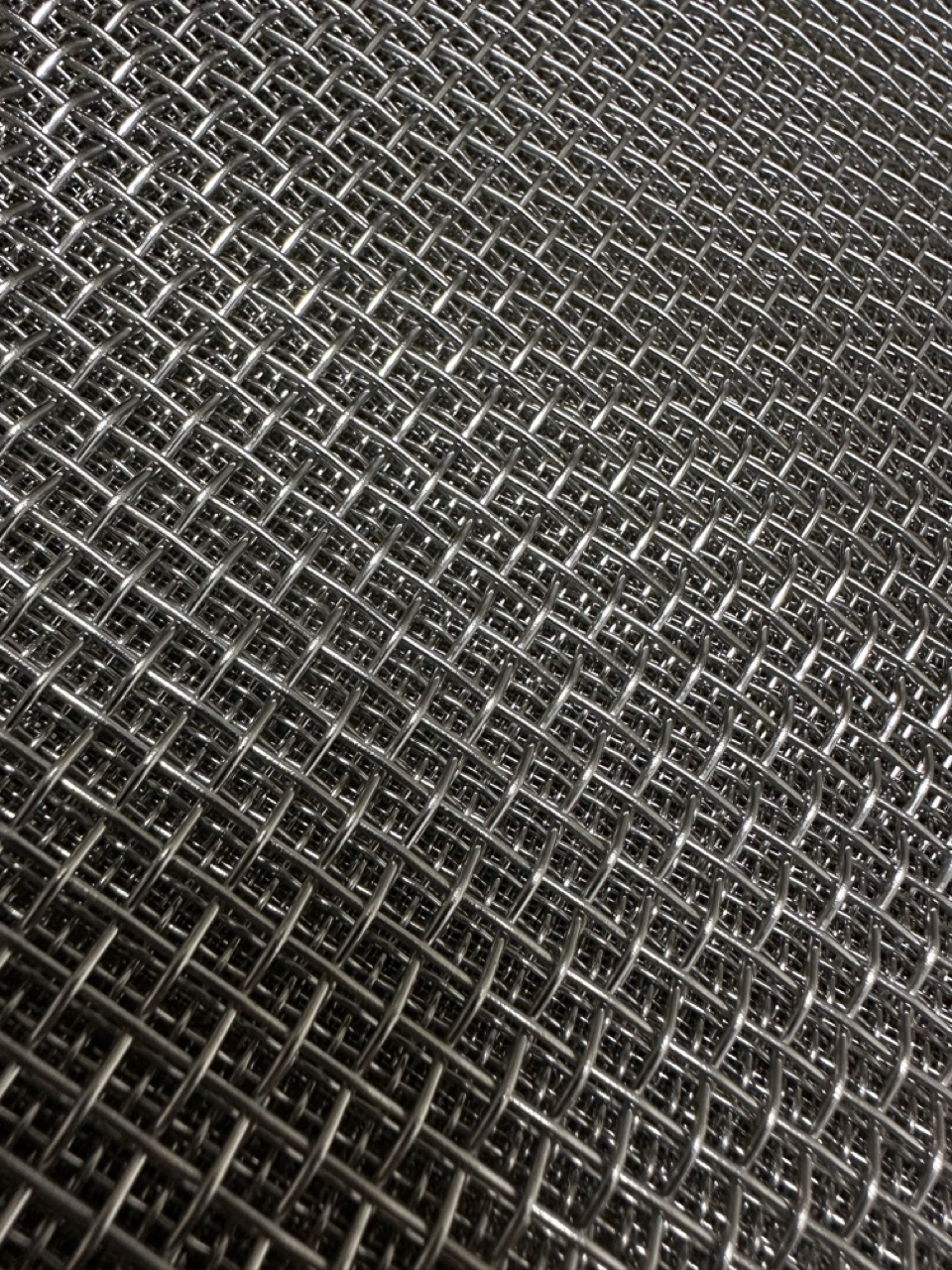

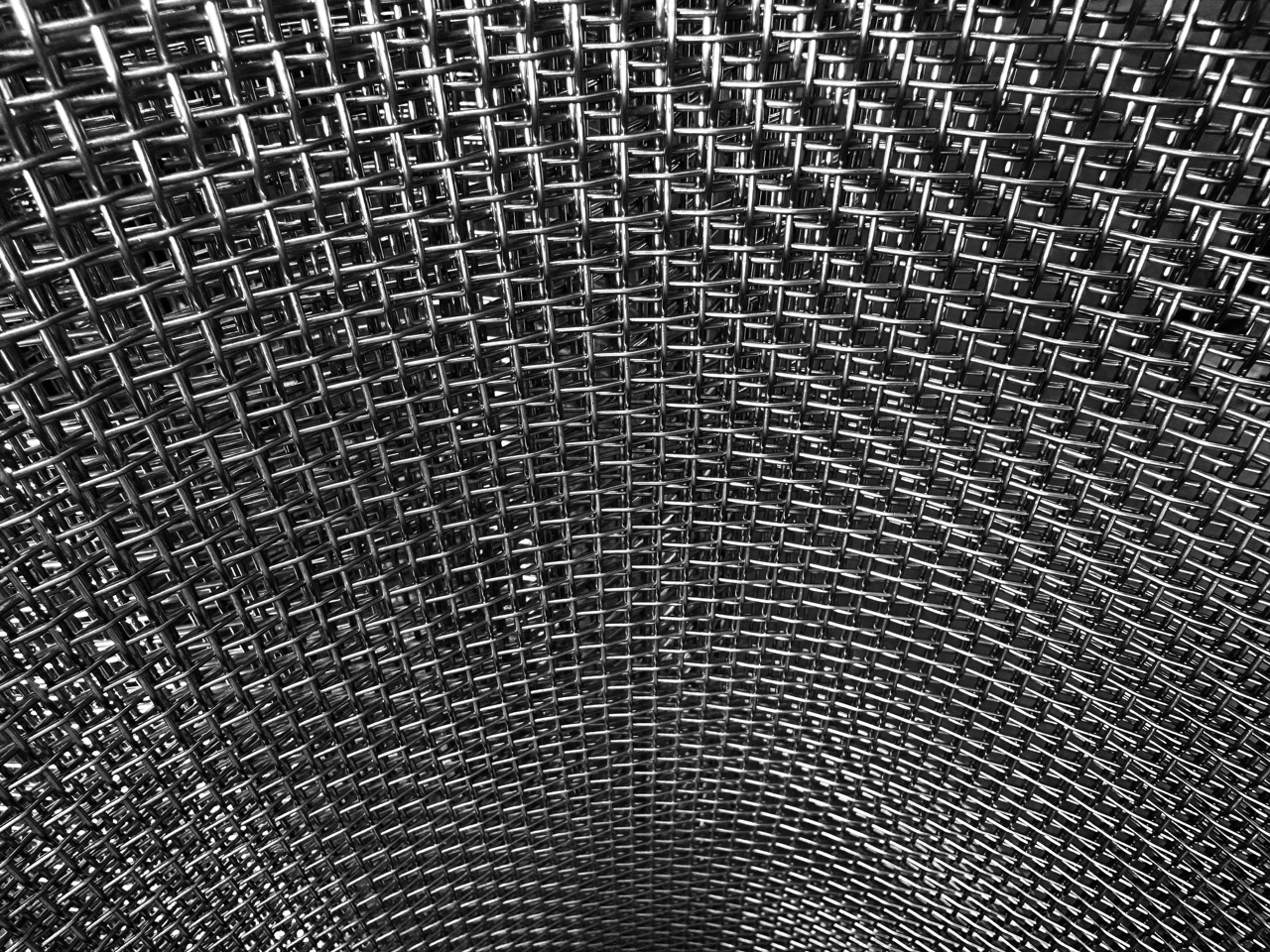

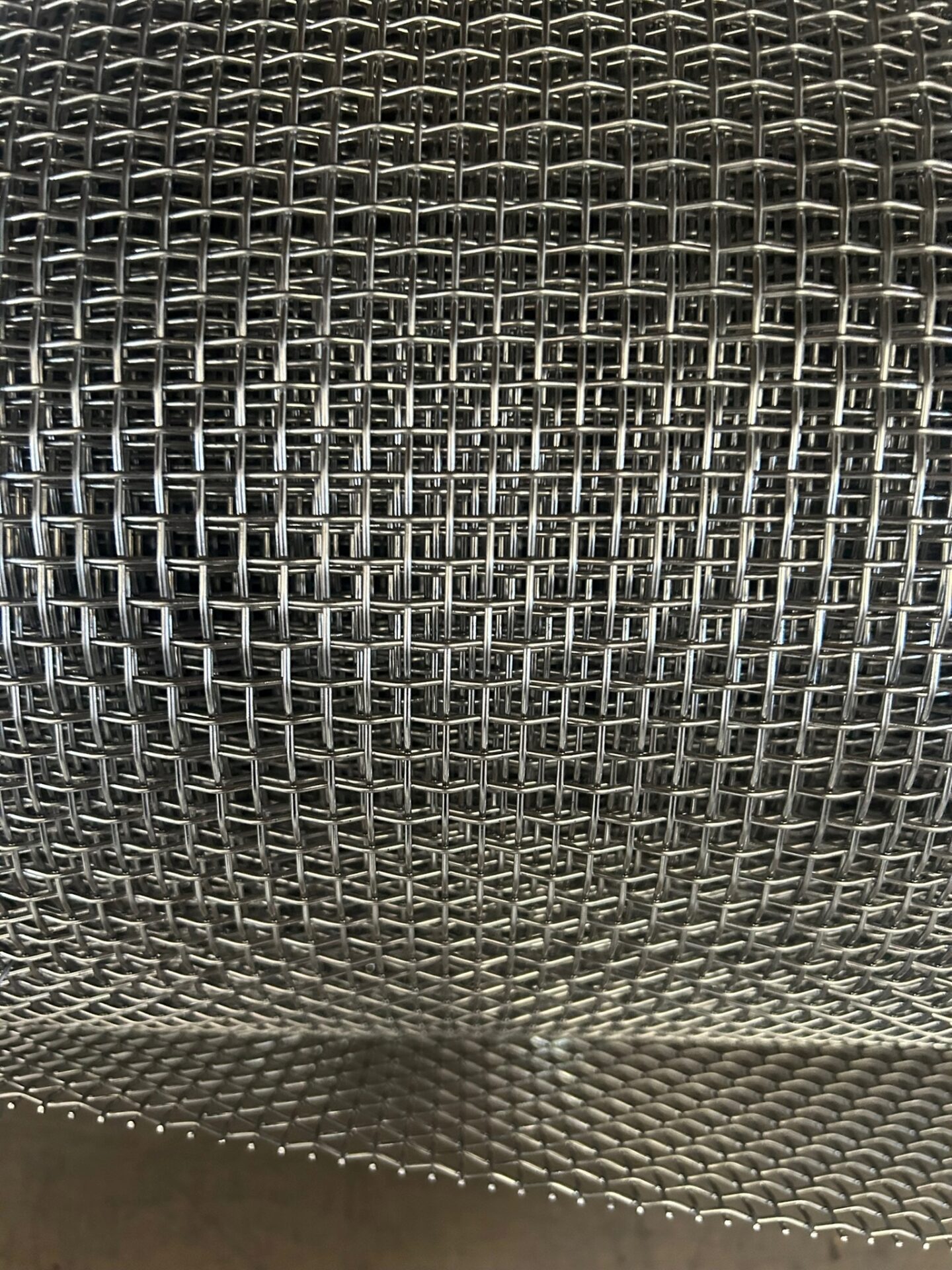

Woven Wire Mesh
Our woven wire mesh sheets are highly versatile, designed for a wide range of sieving, straining, and filtering applications.
Known for their durability and corrosion resistance, our soffit mesh effectively prevents unwanted rodents and birds from entering roof voids, while still allowing for proper ventilation.
Woven mesh is a type of fabric made from metal wires intricately interlaced in a grid pattern. There are various weave patterns, wire diameters, and materials to choose from, woven metal mesh offers flexibility for numerous applications. It is also widely used in doors and windows as mosquito-repelling guards and for added security.
| Mesh | Grade | Wire Dia | Aperture | Width |
|---|---|---|---|---|
| 3 | 304/316 | 1.6mm | 6.87mm | 1220mm |
| 4 | 304 | 1.2mm | 5.10mm | 1220mm |
| 5 | 304 | 1.0mm | 4.00mm | 1220mm |
| 6 | 304 | 1.2mm | 2.98mm | 1220mm |
| 6 | 304 | 0.9mm | 3.33mm | 1220mm |
| 7 | 304 | 0.81mm | 2.82mm | 1000mm |
| 8 | 304/316 | 0.71mm | 2.41mm | 1220mm |
| 10 | 304 | 0.56mm | 1.98mm | 1220mm |
| 10 | 304 | 0.63mm | 1.91mm | 1220mm |
| 10 | 304 | 0.90mm | 1.64mm | 1220mm |
| 12 | 316 | 0.50mm | 1.62mm | 915mm |
| 16 | 304 | 0.355mm | 1.23mm | 1220mm |
| 16 | 304 | 0.45mm | 1.14mm | 1220/1525mm |
| 18 | 304/316 | 0.40mm | 1.01mm | 1220mm |
| 20 | 304/316 | 0.355mm | 0.92mm | 1220/1525mm |
| 20 | 316 | 0.40mm | 0.87mm | 1220mm |
| 20 | 304 | 0.45mm | 0.82mm | 1220mm |
| 24 | 304 | 0.355mm | 0.71mm | 1220mm |
| 28 | 304 | 0.355mm | 0.55mm | 1220mm |
| 30 | 304/316 | 0.28mm | 0.57mm | 1220mm |
| 40 | 304/316 | 0.22mm | 0.42mm | 1220/1525mm |
| 50 | 304/316 | 0.19mm | 0.32mm | 1220/1525mm |
| 60 | 304/316 | 0.16mm | 0.26mm | 1220/1525mm |
| 80 | 304/316 | 0.13mm | 0.19mm | 1220/1525mm |
| 100 | 304/316 | 0.11mm | 0.14mm | 1220/1525mm |
| 120 | 304 | 0.09mm | 0.12mm | 1220mm |
| 150 | 316 | 0.07mm | 0.098mm | 1220mm |
| 200 | 316 | 0.05mm | 0.077mm | 1220mm |
| 250 | 316 | 0.04mm | 0.062mm | 1220mm |
| 325T | 316 | 0.035mm | 0.042mm | 1220mm |
